CONCHORD CW 12 D2

CW 12 D2

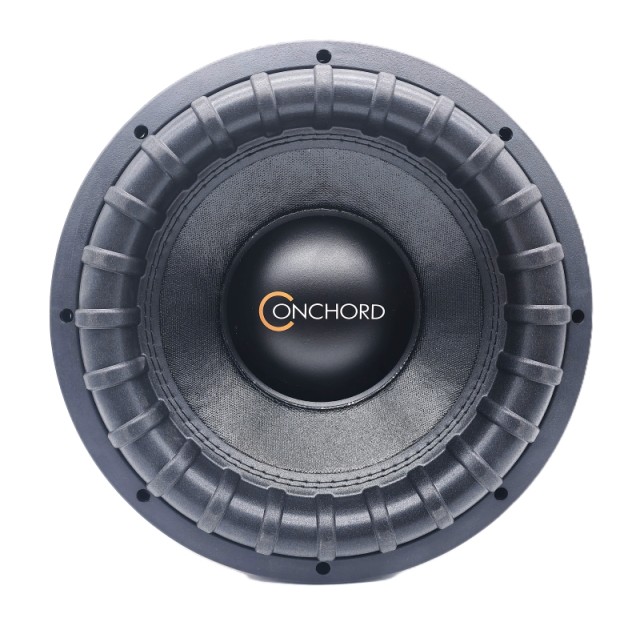

SUBWOOFER CONCHORD 12"

POWER HANDLING

600W RMS 1%THD/1200W MUSIC/1800W PEAK

TECHNICAL SPECIFICATIONS

IMPEDANCE:Zn 2+2 OHM

VOICE COIL DIAMETER:@ 3 INCH

VOICE COIL WINDING HEGTH:42mm

MAX LINEAR EXCURSION:Xmax +/-21 mm

MAX MECHANICAL EXCURSION:X mech +/-30 mm

CONE AREA: Sd 490,9 mm2

MOVING MASS:Mms 196,5g

DC RESISTANCE: Re (series) 4,6 Ohm (3,6)*

RESONANCE FREQUENCY: Fs 41 Hz (34)*

MECHANICAL Q FACTOR: Qms 10,5 (8,4)*

ELECTRICAL Q FACTOR:Qes 1,52 (1,2)*

TOTAL Q FACTOR:Qts 1,33 (1,1)*

EQUIVALENT AIR VOLUME: VAS 25,7L (25)*

FLUX DENSITY:B/L 12,38 N/A

EFFICIENCY 2,83v/1m: SPL 89,3 dB

* AFTER BURN-IN PERIOD

MECHANICAL SPECIFICATIONS by Kod.

-STEEL BASKET

-NON PRESSED PAPER CONE

-FOAM SURROUND

-PP DUSTCAP

-DUAL SPIDER

-MAGNET 157X85X40

-HIGH POWER BASV VC

DIMENSIONS AND WEIGHT

-EXTERNAL DIAMETER 315 mm

-MOUNTING DIAMETER 270 mm

-MOUNTING DEPTH 160 mm
