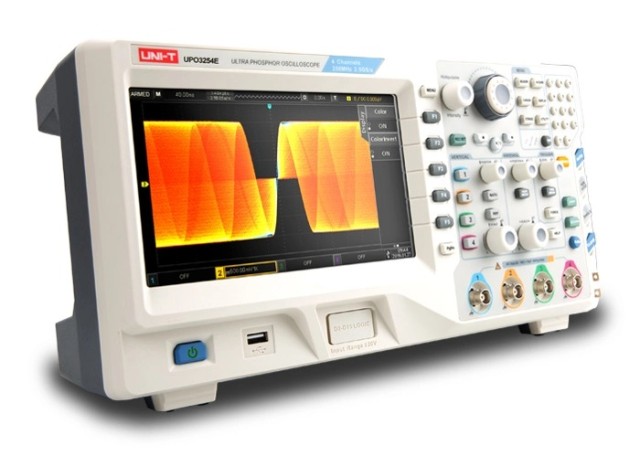

UNI-T ψηφιακός παλμογράφος πάγκου UPO3154E, 4 καναλιών, 150MHz

-4 channels
-150MHz bandwidth
-2.5GS/s sampling rate
-200.000wfms/s waveform capture rate
70Mpts memory depth
-adjustable time-base stall
-256-level intensity grading display
-multiple triggers & decoding available
-8 inches TFT LCD, WVGA (800 x 480)
-up to 100.000 frames waveform recording

Τεχνικά χαρακτηριστικά
Bandwidth: 150mhz
Analog channels: 4
Real-time sample rate: 2.5 GSa/s
Max. memory depth: 70 Mpts
Waveform capture rate: 200,000 wfms/s
Trigger types: Edge, Runt, Window, Nth Edge, Delay, Overtime, Duration, Setup/Hold, Pulse Width, Slope, Video, CodeRS232/UART, I2C, SPI, USB, CAN, LIN, FlexRay
Bus decode: RS232/UART, I2C, SPI, USB, CAN, LIN, FlexRay
Waveform operations: A+B, A-B, AxB, A/B, FFT, editable advanced and logical operations
Auto measurements: Max, Min, High, Low, Ampl, Pk-Pk, Middle, Mean, CycMean, RMS, CycRMS, Period, Freq, Rise, Fall, RisDelay, Fall Delay, +Width, -Width, FRR, FRF, FFR, FFF, LRF, LRR, LFR, LFF, +Duty, -Duty, Area, CycAOverSht, PreSht, Phase, 34 parameters in total
Measurement display: 5 types
Measurement statistics: Average, Max, Min, standard deviation and number of measurements
Frequency counter: 6 bits
Interfaces: Standard: USB Host, USB Device, LAN, EXT Trig, AUX Out (Trig Out, Pass/Fail), VGA
Optional: AWG
Display: 8-inch TFT LCD, WVGA (800 x 480)
Product net weight: 4.2kg
Product size: 370mm x 195mm x 125mm

Συσκευασία προϊόντος: Εργοστασιακή συσκευασία σε τυπωμένο χαρτοκιβώτιο

Περιεχόμενα συσκευασίας
Παλμογράφος πάγκου
Καλώδιο τροφοδοσίας
2x Passive probe
Εγχειρίδιο χρήσης
